How to use the IMLOG2 Function in Excel

In this article, we will learn about how to use the IMLOG2 function in Excel.

COMPLEX number (inumber) in excel derived for mathematical number having real and imaginary coefficients. In mathematics we call it the coefficient of i or j (iota).

i = √-1

Square root of negative number is not possible, so for calculation purpose, √-1 is named as imaginary and call it iota (i or j). For calculation of some term like shown below.
= 2 +√-25

= 2 +√-1*25

= 2 +√-1*25

= 2 +√-1* 5

= 2 + 5i

This here equation is a Complex number (inumber) having 2 different parts called real part imaginary part

The coefficient of iota (i) which is 5 is called as imaginary part and the other part 2 is called the real part of the complex number.



Complex number (inumber) is written in the X + iY format.

Logarithm at base 2 of a complex number (X + iY) is given by:

log2 ( X +iY) = log2(e) loge ( X +iY) = log2(e) [ loge√X2 +Y2 + i tan-1(Y/X) ]



Here X & Y are the coefficients of the real & imaginary part of the complex number (inumber).

Here:

  1. log at the base 2 is called the logarithmic of a number at base - 2.
  2. log at the base e is called the natural logarithm ( ln ) of a number where e = 2.7182…(approx).
  3. Coefficient of iota is inverse tan function of ( Y / X )tan-1(Y/X)which returns the angle in radians.

log2( X +iY) =log2(e) [ ln √X2 +Y2 + i tan-1(Y/X)]



The IMLOG2 function returns the logarithmic value of the complex number (inumber) at base - 2.

Syntax:

=IMLOG2 (inumber)

inumber : complex number for which you want the complex logarithmic at base 2.

Let’s understand this function using it in an example.
0090
Here we have values where we need to get the logarithmic value of the input complex number (inumber) at base 2.

Use the formula:

=IMLOG2 (A2)

A2 : complex number (inumber) provided as cell reference.
0091
As you can see the complex number having real_num = 4 & imaginary part = 3. The formula returns the logarithmic value of the input complex number(4 + 3i) at base - 2.

At base - 2 logarithmic value of a complex number (4 + 3i) =

log2 (4 + 3i) = log2(e)[ ln (4 +3i)] = log2(e)[ ln √42 +32 + i tan-1( 3 / 4 )]

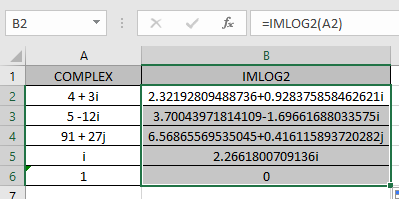

Now copy the formula to the other remaining cells using Ctrl + D shortcut key.
0092
As you can see the IMLOG2 function formula giving results just fine.

The table here explains more about the input real & imaginary part.

inumber Real part (X) Imaginary part (Y)
i = 0 + 1i 0 1
1 = 1 + 0i 1 0

Note:

The formula returns the #NUM! error if the complex number doesn’t have lower case i or j (iota) otherwise the excel treats it as text rather than a complex number.
Hope you understood how to use IMLOG2 function and referring cell in Excel. Explore more articles on Excel mathematical functions here. Please feel free to state your query or feedback for the above article.
